Adieu, Quake!

27 Aug 2019

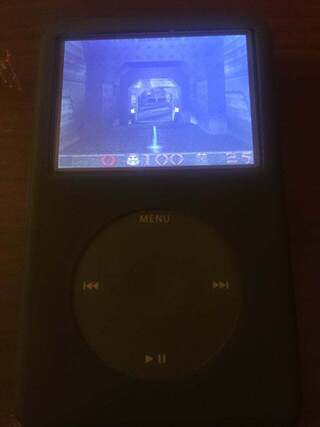

Quake on Rockbox Quake on the iPod Classic.
Quake running on an iPod Classic.

TL;DR I made Quake run on MP3 players. Read how it happened.

I spent part of this summer playing with two of my favorite things: Rockbox and id Software’s Quake. I even got the chance to combine the two by porting Quake to run on Rockbox! What more could I ask?

This post is my story of how it went down. It is a protracted one, dragging on for nearly two years. It is also my first attempt at documenting the development proess in long form and “in the raw,” as opposed to the finished technical documentation I’ve written way too much of – do bear with me. There will be technical details, but I will try to focus on the thought process behind the code.

Alas, the time has come to bid Rockbox and Quake goodbye, at least for the near term. My free time will be preciously scarce in the coming months, so I’m trying to get this brain dump in before the deluge.


Rockbox is a fun open-source project I spend far too much time hacking on. The web page explains it best: “Rockbox is a free replacement firmware for digital music players.” That’s right, we provide a complete replacement for the manufacturer’s software that came on your Sandisk Sansa, Apple iPod, or any of a wide array of other supported targets.

Not only do we aim to replicate the original firmware’s functionality, we support loadable extensions called plugins – small programs to run on your MP3 player. Rockbox already has a bunch of nifty games and demos, the most impressive of which were probably the first-person shooters Doom and Duke Nukem 3D.1 But I still felt there was something missing.

Enter Quake

Quake is a fully 3D first-person shooter. Let’s break that down. They key words there are fully 3D, as opposed to Doom and Duke Nukem 3D, both of which are usually considered 2.5D – imagine a 2D map with an additional height component. Quake, on the other hand, is fully 3D. Every vertex and polygon exists in 3-space. What this means is that the old pseudo-3D tricks no longer work – everything is now full-blown 3D. Anyhow, I digress. In short, Quake is the Real Deal™.

Quake is no joke, either. Some research showed that Quake “requires” a ~100 MHz x86 with a FPU and ~32 MB of RAM. Before you chuckle, keep in mind that Rockbox’s targets are probably nothing close to what John Carmack had in mind when writing the game – Rockbox runs on devices with CPUs as slow as 11MHz and as little as 2 MB of RAM (of course, Quake wasn’t going to be running on those devices). With this in mind, I looked at my ever-shrinking DAP collection and picked out the most powerful surviving member: an Apple iPod Classic/6G, with a 216 MHz ARMv5E and 64 MB of DRAM (the E indicates the presence of ARM DSP extensions – this will be important later). Nothing to sneeze at, but certainly marginal when it comes to running Quake.

The Port

There exists a wonderful version of Quake which runs on SDL. It is called, unsurprisingly, SDLQuake. Thankfully, I already ported the SDL library to Rockbox (that’s for another article), so getting Quake to compile was rather straightforward, if not the most glorious work: copy over the source tree; make; fix errors; rinse; repeat. I’m probably glossing over a lot of minutiae here – but just imagine my excitement when I eventually got a successfully compiling and linking Quake executable. I was ecstatic.

Let’s load her up! I thought.

And it booted! The beautiful Quake console background greeted me, as did the menu. All good. But not so fast! When I started a game, something wasn’t right. The “Introduction” level seemed to load fine, but the spawn position was completely outside the map. Strange, I thought. I poked and prodded, debugged and splashf’d, but to no avail – the bug was too hard for me, or so it felt.

And so it remained, for years. I should probably give a little timing information at this point. This first attempt at Quake took place in September 2017, after which I gave up, and my Quake-Rockbox abomination sat on a shelf, collecting dust, until July 2019. By just the right combination of boredom and motivation, I resolved to finish what I had started.

I got to debugging. Now, my flow state is such that I remember virtually no details of what exactly I did, but I’ll try my best here to reconstruct.

As I discovered, the structure of Quake is divided into two main parts: the engine code, in C; and the high-level game logic, in QuakeC, a bytecode-compiled language. Now, I had always stayed away from the QuakeC VM due to some weird fear of debugging other people’s code. But now it forced me to delve in. Here again I vaguely recall a mad flow session in which I sought out the root of the bug. After what must’ve been a whirlwind of greps, I found my culprit: pr_cmds.c:PF_setorigin. This function takes a 3-vector specifying the player’s new coordinates when starting a map, which, for some reason, was always (0, 0, 0). Hmm…

I traced the data flow back and found where it originated – a call to Q_atof() – the classic string to float converter. And then it dawned on me: I had provided a set of wrapper functions, which overrode Quake’s Q_atof() – and my atof() function must’ve been broken. Fixing it was straightforward. I replaced my flawed atof with a correct one – the one that shipped with Quake. Et voilà! The glorious three-passage introduction level loaded flawlessly, and “E1M1: The Slipgate Complex” loaded fine too. The sound output still sounded like a 2-cycle lawnmower, but hey – I’d gotten Quake to boot on an MP3 player!

Down the Rabbit Hole

This project finally gave me an excuse to do something I’d been putting off for a while: learn ARM assembly language.2

The application was in a performance-sensitive sound mixing loop in snd_mix.c (remember the lawnmower-like sound?).

The SND_PaintChannelFrom8 function takes an array of 8-bit mono sound samples and mixes it into an existing 16-bit stereo stream, with left and right channels scaled independently based on two integer parameters. GCC was doing a terrible job at optimizing the saturation arithmetic, so I took a shot at it myself. I rather like how it turned out.

Here’s the assembly version I came up with (C version follows):

        ;; r0: int true_lvol
        ;; r1: int true_rvol
        ;; r2: char *sfx
        ;; r3: int count

        stmfd sp!, {r4, r5, r6, r7, r8, sl}

        ldr ip, =paintbuffer
        ldr ip, [ip]

        mov r0, r0, asl #16                 ; prescale by 2^16
        mov r1, r1, asl #16

        sub r3, r3, #1                      ; count backwards

        ldrh sl, =0xffff                    ; halfword mask

        ldrsb r4, [r2, r3]                  ; load input sample
        ldr r8, [ip, r3, lsl #2]                ; load output sample pair from paintbuffer
                                ; (left:right in memory -> right:left in register)
        ;; right channel (high half)
        mul r5, r4, r1                      ; scaledright = sfx[i] * (true_rvol << 16) -- bottom half is zero
        qadd r7, r5, r8                     ; right = scaledright + right (in high half of word)
        bic r7, r7, sl                      ; zero bottom half of r7

        ;; left channel (low half)
        mul r5, r4, r0                      ; scaledleft = sfx[i] * (true_rvol << 16)
        mov r8, r8, lsl #16                 ; extract original left channel from paintbuffer
        qadd r8, r5, r8                     ; left = scaledleft + left

        orr r7, r7, r8, lsr #16                 ; combine right:left in r7
        str r7, [ip, r3, lsl #2]                ; write right:left to output buffer
        subs r3, r3, #1                         ; decrement and loop

        bgt 1b                          ; must use bgt instead of bne in case count=1

        ldmfd sp!, {r4, r5, r6, r7, r8, sl}

        bx lr

There’s some hackery going on here that could use some explaining. I’m using the ARM qadd DSP instruction to get saturation addition for cheap, but qadd only works with 32-bit words, and the sound samples are 16 bits. The hack, then, is to first shift the samples left by 16 bits; qadd the samples together; and then shift them back. This accomplishes in one instruction what GCC took seven to do. (Sure, I could’ve avoided this hack altogether if I were working with ARMv6, which has MMX-esque packed saturation arithmetic with qadd16, but alas – life isn’t so easy. And besides, it was a cool hack!)

Notice also that I’m reading and writing two stereo samples at a time (with a word-sized ldr and str) to save a couple more cycles.

The C version is below for reference:

void SND_PaintChannelFrom8 (int true_lvol, int true_rvol, signed char *sfx, int count)
        int     data;
        int             i;

        // we have 8-bit sound in sfx[], which we want to scale to
        // 16bit and take the volume into account
        for (i=0 ; i<count ; i++)
            // We could use the QADD16 instruction on ARMv6+
            // or just 32-bit QADD with pre-shifted arguments
            data = sfx[i];
            paintbuffer[2*i+0] = CLAMPADD(paintbuffer[2*i+0], data * true_lvol); // need saturation
            paintbuffer[2*i+1] = CLAMPADD(paintbuffer[2*i+1], data * true_rvol);

I calculated about a 60% improvement in instructions/sample over the optimized C version. Most of the saved cycles come from using qadd for saturation arithmetic and packing of memory operations.

A “Prime” Conspiracy

Here’s another interesting bug I ran into along the way. You’ll notice the assembly listing has a comment by the bgt instruction (branch if greater than) noting that bne (branch if not equal) cannot be used because of a corner case that freezes if the sample count is 1. This will lead to an integer wraparound to 0xFFFFFFFF and an extremely long delay (which will eventually resolve itself).

This corner case was triggered by one sound in particular, of 7325 samples in length.3 What’s so special about 7325, you ask? Try taking it modulo any power of two:

\[ \begin{align*} 7325 &\equiv 1 &\pmod{2} \\ 7325 &\equiv 1 &\pmod{4} \\ 7325 &\equiv 5 &\pmod{8} \\ 7325 &\equiv 13 &\pmod{16} \\ 7325 &\equiv 29 &\pmod{32} \\ 7325 &\equiv 29 &\pmod{64} \\ 7325 &\equiv 29 &\pmod{128} \\ 7325 &\equiv 157 &\pmod{256} \\ 7325 &\equiv 157 &\pmod{512} \\ 7325 &\equiv 157 &\pmod{1024} \\ 7325 &\equiv 1181 &\pmod{2048} \\ 7325 &\equiv 3229 &\pmod{4096} \end{align*} \]

5, 13, 29, 157

Notice anything? That’s right – by some coincidence, 7325 is prime whenever taken modulo a power of two. This somehow (I’m actually not sure exactly how) leads to the sound mixing code being passed a one-sample array, triggering the corner case and freeze.

I spent at least a day rooting out this bug, only to find that it all came down to one wrong instruction. Life is like that sometimes, isn’t it?


In the end I ended up packaging this port up as a patch and merging it into the Rockbox mainline, where it resides today. It ships with builds for most of the ARM targets with color displays in Rockbox 3.15 and later.4 If you don’t have a supported target, you can watch user890104’s demo.

I’ve omitted a couple interesting things here for the sake of space. There is, for example, the race condition that occured only when gibbing a zombie but only when the audio sample rate was 44.1 kHz. (This was a result of the sound thread trying to load a sound – a explosion – while the model loader tried to load the gib model. These two sections relied on a common function that relied on the same global variable.) And then there’s the assorted alignment issues (love ’ya, ARM!) and the rendering micro-optimizations I made to squeeze out a few more frames. But those are for another time. For now, it is time to say goodbye to Quake – it’s been good to me.

So long, and thanks for all the fish!

  1. The latter game was the first to use the Rockbox SDL runtime and deserves a post of its own. Watch user890104’s demo of it here.↩︎

  2. If you’re interested in learning ARM assembly, Jasper Vijn’s Tonc: Whirlwind Tour of ARM Assembly is a good (albeit slightly outdated and GBA-oriented) place to start. And while you’re at it, go ahead and get a printout of the ARM Quick Reference Card.↩︎

  3. It was the sound triggered by a 100 health pickup, incidentally.↩︎

  4. I honestly don’t remember exactly which targets do and don’t support Quake. If you’re curious, head over to the Rockbox site and try installing a build for whatever target(s) you might have. And do how it runs! New versions of Rockbox Utility (1.4.1 and later) also support automatic installation of the Quake shareware.↩︎
